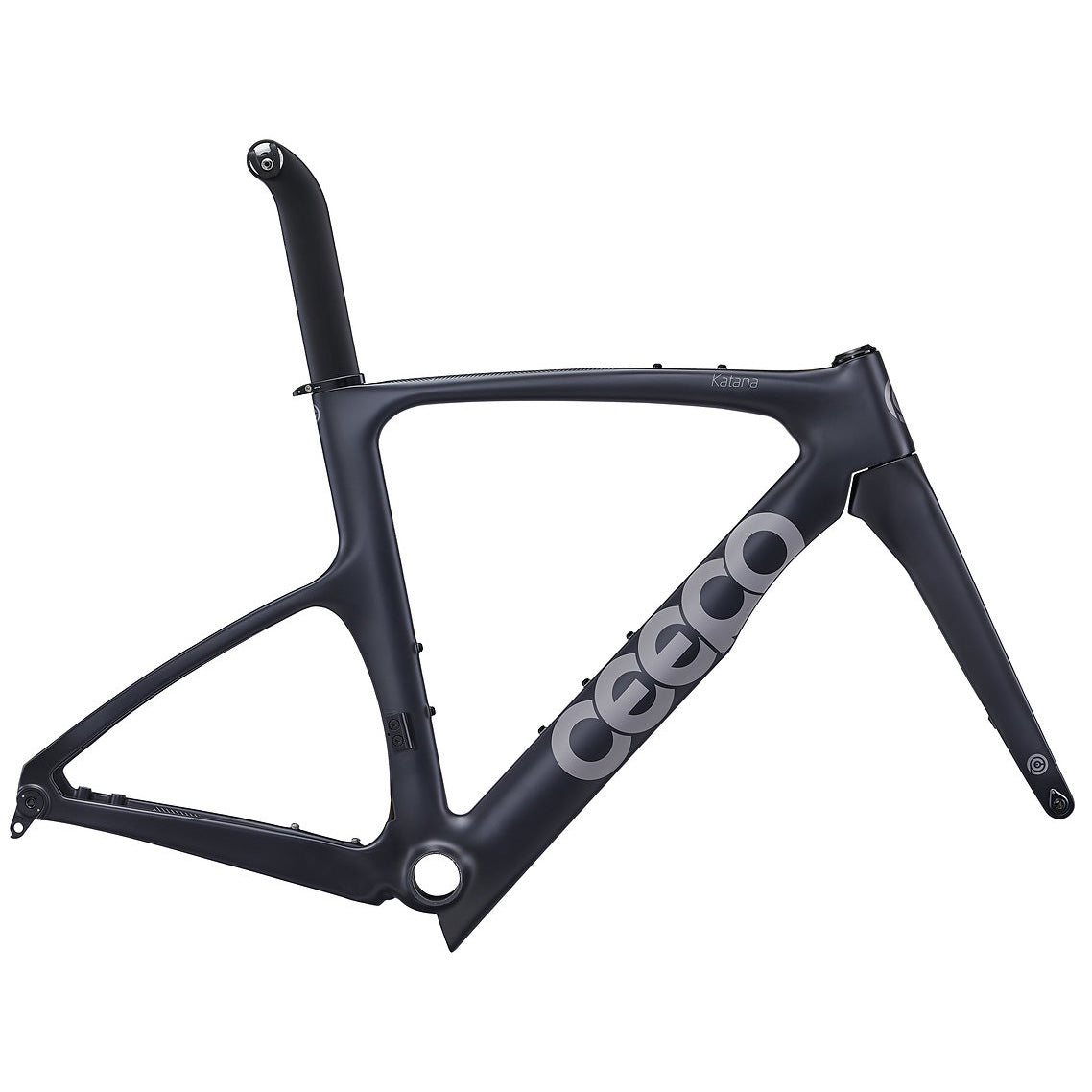

2024 Ceepo Katana カタナ Frameset Kit

Light, Fast & Easy to Travel With

When we designed the Katana, our goal was to achieve the simplest, fastest, easiest to travel with triathlon bike. It continues to be the best selling Ceepo model every year. There are no special brakes or parts required. The Katana frame can be assembled by any mechanic and at 1195g Raw M size, Katana is one of the lightest Long distance triathlon frames available.  It is very stable and fast in crosswinds; the Katana’s geometry allows for an aggressive forward positioning and is the perfect frame for the athlete that like a traditional, simple, double-triangle frameset!

Frame, fork, seatpost and headset only.

Contact us for a custom build and we will ship you a complete bike that's ready to go.

Shipping is $125 in the US. Local delivery within 20 miles of our location, or pickup, in Lansdale, PA is free.

Compatible Groupset:
Mechanical and Electronic Shifting, 2x and 1x.
SHIMANO
SRAM
FSA
Classified PowerShift Hub​

Crankset Min/Max:
Min: 30T
Max: 53T

Bottom bracket:
BB386EVO

Headset:
1-1/8, 1-1/4 (IS42/28.6, IS47/33)

Brake & Rotor:
Flat Mount,
Rotor: 160mm Max​

O.L.D. & Axle:
Front: 100mm x Ø12,
Rear: 142mm x Ø12​

Seat post:
CEEPO tri-seat post (reversible)​

Frameset info:
Frame:1195g(M size, naked)
Fork: 435g (uncut steerer 300mm, naked)​

Carbon info:
Japan Toray®

Tire clearance:
Max 28c

UCI:
No
